SEM in FMEA of metallic materials

What is SEM and how can it be used for failure mode and effects analysis?

Scanning electron microscopy (SEM) is a useful tool for the failure mode and effects analysis (FMEA) of metallic materials that provides invaluable insights into the root causes of material breakdowns.

Its advanced imaging capabilities and analytical techniques enable the precise examination of microstructural characteristics, aiding in identifying flaws, defects and fracture mechanisms.

Using detailed imaging and compositional analysis, SEM techniques facilitate a comprehensive understanding of material failures, contributing significantly to the improvement of material quality and structural integrity.

Scanning electron microscopy (SEM)

How can SEM be used in FMEA?

Using a scanning electron microscope is helpful for comprehensive FMEA.

When using SEM for failure analysis, the analytical method involves four main steps.

1. Sample preparation

Prepare metallic material samples for SEM analysis by cleaning and polishing them to enhance visibility under the microscope. Additionally, consider coating the samples for improved imaging quality.

2. Adjusting SEM parameters

Refine SEM parameters, including accelerating voltage, beam current and working distance to ensure optimal imaging and precise examination of metallic samples.

3. Image capture and analysis

Initiate the SEM to scan and capture high-resolution images of the metallic material surfaces. Use the SEM software for detailed analysis, examining microstructural features, surface defects and fracture patterns.

4. Microstructural examination

Examine and analyse surface characteristics, including grain boundaries, cracks and inclusions. Investigating surface defects is instrumental in understanding failure mechanisms.

How is FMEA applied across different industries?

FMEA is applied across various industries such as aerospace, automotive, manufacturing and more. SEM plays a crucial role by enabling detailed analysis and identification of failure causes, ensuring safety, quality, and reliability in each sector’s specific applications.

Aerospace and automotive

SEM helps ensure safety and efficiency in the aerospace and automotive sectors by identifying the underlying causes of failures. For example, SEM analysis detects critical issues such as microfractures or stress conditions in turbine blades, ensuring the continued safe operation of aircraft. In the automotive industry, SEM aids identification of fatigue-related cracks in engine components, enabling timely maintenance to prevent catastrophic failures.

Manufacturing and metallurgy

In manufacturing, SEM assists in detecting defects in critical components, such as microstructural anomalies in welds or casting imperfections. For instance, SEM analysis in metallurgical processes can pinpoint material inclusions that might affect steel quality, ensuring the production of high-performance materials. Furthermore, SEM aids in flaw identification, such as highlighting porosity in manufactured parts, so that manufacturers can take preventative measures against quality issues.

Biomedical engineering

In the biomedical engineering sector, engineers conducting FMEA employ SEM to inspect medical implants for defects or structural irregularities, establishing their integrity and reliability. In orthopaedic implants, SEM is helpful for identifying corrosion, ensuring the safety and longevity of implants. Similarly, SEM analysis of pacemaker components aids in detecting material fatigue, leading to iterative improvements in implant design to enhance reliability and ensure patient well-being.

Energy and construction

SEM-based FMEA supports the energy sector during the investigation of metallic materials in pipelines, helping to detect corrosion or stress-related fractures. For instance, SEM aids in identifying microfractures at critical weld points, effectively preventing gas leaks in pipelines. Similarly, in the construction industry, SEM proves instrumental in identifying structural defects in building materials. This application ensures the structural integrity of buildings, safeguarding against issues like steel fatigue and potential failures.

How do I select the right SEM?

When performing a failure analysis, selecting the most suitable SEM equipment is crucial. At SciMed, a range of five distinct scanning electron microscopes is available, each tailored to specific applications across diverse sectors.

The SNE-ALPHA, known for its ultra-clear resolution, particle size analysis and 3D rendering capabilities, proves beneficial in the electronics sector. Its focus on detailed microstructural examination suits industries where scrutinising defects is important.

Conversely, the SEM3200‘s low vacuum mode, designed for non-conductive samples without the need for coating, finds application in semiconductor or materials science analyses. Its adaptability and imaging capacity cater to sectors requiring precise observations.

For sectors like metallurgy, automotive or aerospace, the SEM2000 stands out with its high-resolution capabilities, ideal for the intricate analysis of materials. Meanwhile, the SEM4000 and SEM5000, armed with advanced field emission technology and high-resolution imaging, resonates with the advanced materials research, nanotechnology or semiconductor industries due to its versatility and emphasis on precise imaging for FMEA.

When selecting SEMs for failure analysis in different sectors, it can help to consider resolution, imaging capacities, sample compatibility and user-friendliness. To ensure the optimal selection of equipment tailored to the unique needs of each sector, we recommend consulting with an SEM expert.

How do I interpret SEM results?

Interpreting SEM results in failure analysis involves a series of steps for comprehensive assessment.

1, Surface inspection and morphology analysis

Conduct a detailed examination of surface morphology and structure to identify anomalies, fractures or irregularities that could contribute to failure mechanisms.

2. Quantitative assessment

Conduct a detailed examination of surface morphology and structure to identify anomalies, fractures or irregularities that could contribute to failure mechanisms.

3. Elemental composition

Use X-ray spectroscopy to determine the elemental composition of the sample. This step allows for the identification impurities, variations or material inconsistencies that may impact failure.

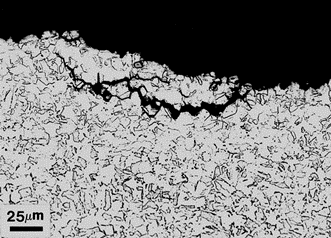

Surface inspection and morphology analysis

4. Surface characterisation

Assess the sample’s surface characteristics, including texture, roughness and topographical irregularities, to gain insights into structural integrity and surface properties related to failure.

5. Defect identification

Examine the sample to identify microstructural defects, discontinuities or irregularities contributing to material failure mechanisms.

What to do next?

Upon extracting insights from SEM analysis, the next phase involves implementing strategic adjustments in material design or production methodologies based on the findings.

For tailored solutions or comprehensive further analysis, we highly recommend consulting with SEM experts. This allows for a collaborative approach to deciphering SEM data and devising effective strategies for enhancing material integrity or refining production processes.

Reach out to the team below to see how SciMed’s range of SEMs can work for your application.
