Fluxana XRF Sample Cups
Discover the New and Improved Fluxana XRF Sample Cups
Introduction to
Introducing the New Fluxana XRF Sample Cup
As a valued customer using Fluxana XRF sample cups, we’re excited to inform you of significant improvements in our product range. These changes enhance product quality, sustainability, and cost-efficiency, making our XRF sample cups better suited to meet your laboratory needs.
Fluxana XRF Sample Cups
Key Benefits of the New Fluxana XRF Sample Cups
1. Improved Sustainability
- Reduced Plastic Use: Our new manufacturing process uses 20% less plastic, contributing to a more sustainable environment.
- Minimised Waste: Experience up to a 33% reduction in point-of-use wastage, thanks to a design that reduces the need to dispose of unused parts, like lids.
2. Enhanced Quality
- Consistency in Manufacturing: Enjoy a more consistent product with tighter manufacturing tolerances.
- Safer Handling: The improved manufacturing process does not leave sharp edges, which reduces the risk of film window breakage and sample.
3. Better Cost-Efficiency
- Pay Only for What You Need: Purchase inner cells, outer rings, and lids separately based on your requirements, ensuring you never pay for unused parts.
- Competitive Pricing: Our new cups are priced equal to or lower than the old versions, providing you with better value.
4. Greater Convenience
- Easy Assembly and Dismantling: Simplified design allows for easier assembly and re-use where appropriate.
- User-Friendly Lids: The new lid design is easier to handle and remove, enhancing user experience.
Fluxana XRF Sample Cups

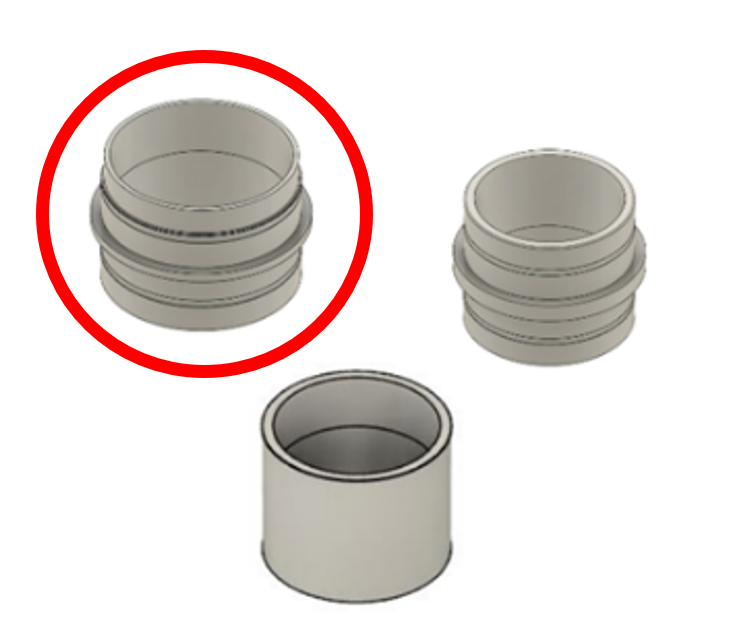

How to Assemble Your New Fluxana XRF Sample Cups
1
Select Your Inner Cell
Example: SC-I-0002
2
Choose the Corresponding Outer Ring(s)
Example: SC-O-0002
3

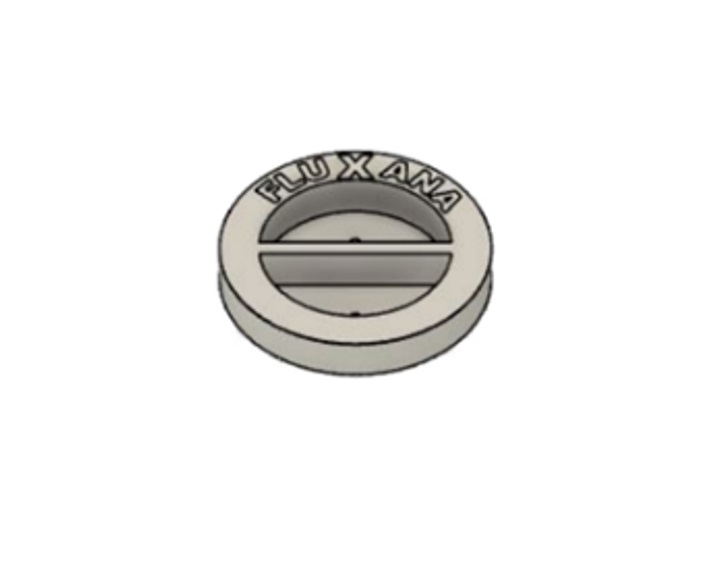

Optional: Select the Lid
Example: SC-L-0001
For instance, combining 1 x SC-I-0002, 1 x SC-O-0002, and 1 x SC-L-0001 replaces the old cup model SC-4331. A complete conversion guide is available, detailing the correct combination of new parts for each old cup code.
Fluxana XRF Sample Cups
Conversion Guide for Old to New Cup Models
| Old Item | New Item | |||
|---|---|---|---|---|
| Code | Description | Inner cell | Outer ring | Lid |
| SC-3332 | Cup ring cap, 32mm | SC-I-0001 | SC-O-0001 | SC-L-0001 |
| SC-3335 | Cup, ring, cap, 35mm | SC-I-0021 | SC-O-0021 | SC-L-0021 |
| SC-3340 | Cup, ring, cap, 40mm | SC-I-0012 | SC-O-0011 | SC-L-0011 |
| SC-3340T | Cup, ring, cap, 40mm tall format | SC-I-0011 | SC-O-0011 | SC-L-0011 |
| SC-3345 | Cup, ring, cap, 45mm | SC-I-0031 | SC-O-0031 | SC-L-0031 |
| SC-3345-H | Cup, ring, cap, 45mm for He ventilation | SC-I-0031 | SC-O-0031 | SC-L-0031 |
| SC-4131 | Cup, ring, collar, single open-ended, 32mm | SC-I-0002 | SC-O-0002 | SC-L-0001 |
| SC-4140 | Cup, ring, collar, single open-ended, 40mm | SC-I-0013 | SC-O-0011 | SC-L-0011 |
| SC-4231 | Cup, 2 rings, double open-ended, 32mm | SC-I-0002 | SC-O-0002 (x2) | - |
| SC-4240 | Cup, 2 rings, double open-ended, 40mm | SC-I-0013 | SC-O-0011 (x2) | - |
| SC-4331 | Cup ring cap, 32mm | SC-I-0002 | SC-O-0002 | SC-L-0001 |
| SC-4332 | Cup ring cap, 32mm | SC-I-0003 | SC-O-0001 | SC-O-0001 |
| SC-4335 | Cup, ring, cap, 35mm | SC-I-0021 | SC-O-0021 | SC-L-0021 |
| SC-4340 | Cup, ring, cap, 40mm | SC-I-0013 | SC-O-0011 | SC-L-0011 |
| SC-4345 | Cup, ring cap, 45mm | SC-I-0031 | SC-O-0031 | SC-L-0031 |
Full assembly and re-order information is provided on the packaging labels.
Fluxana XRF Sample Cups
Availability and Ordering Information
The new format cups are currently available in 32mm and 40mm sizes, with 35mm and 45mm sizes launching later this autumn. We still have limited stocks of old format cups available for short-term orders.
Fluxana XRF Sample Cups
Contact Us
Should you have any questions or need further assistance, please don’t hesitate to reach out. We value your feedback and look forward to supporting your continued use of Fluxana products.
