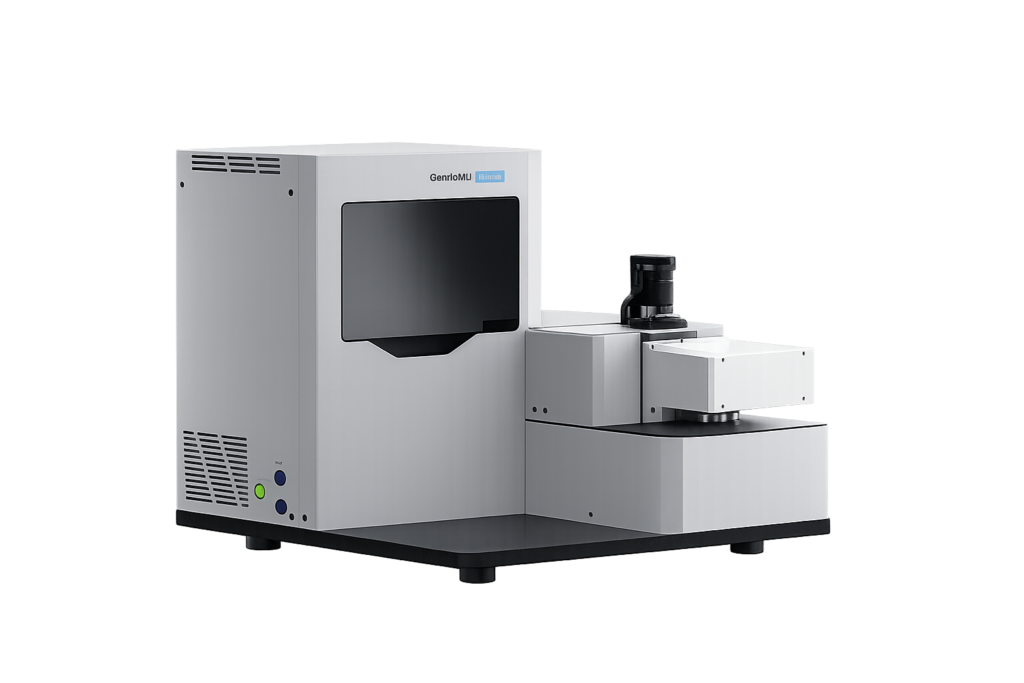

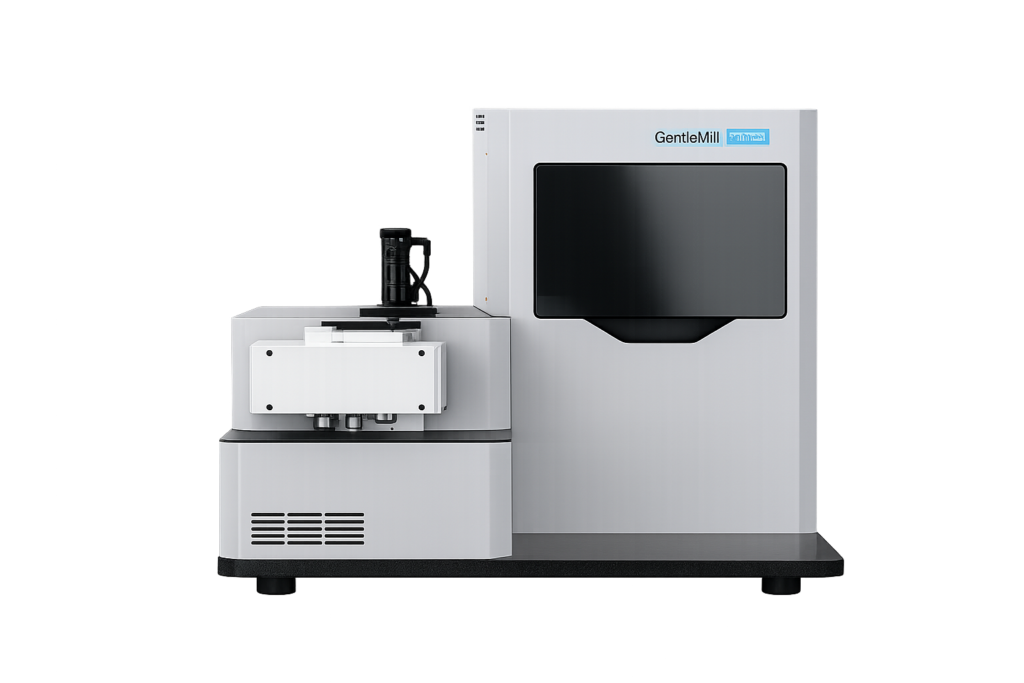

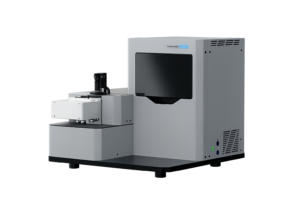

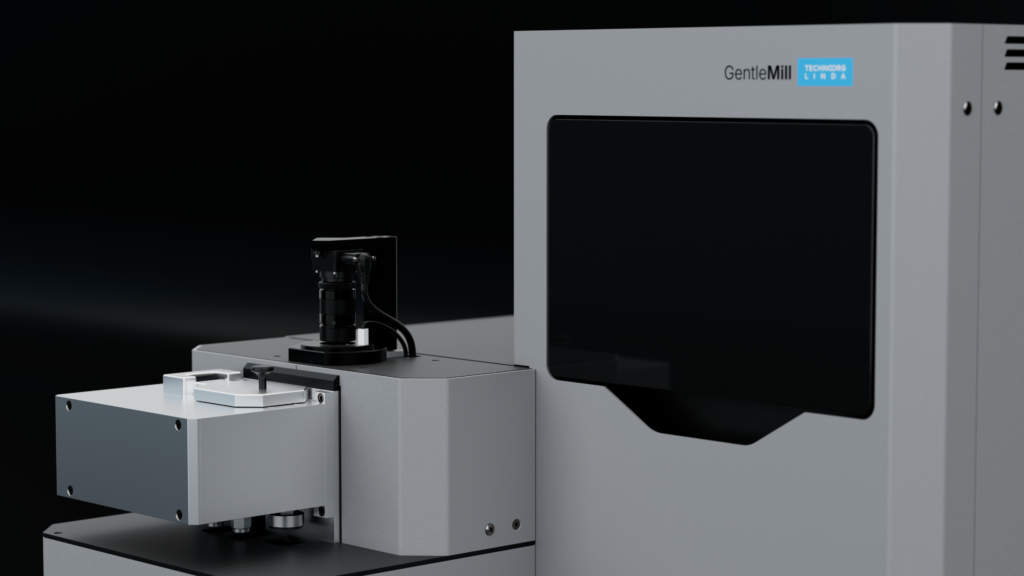

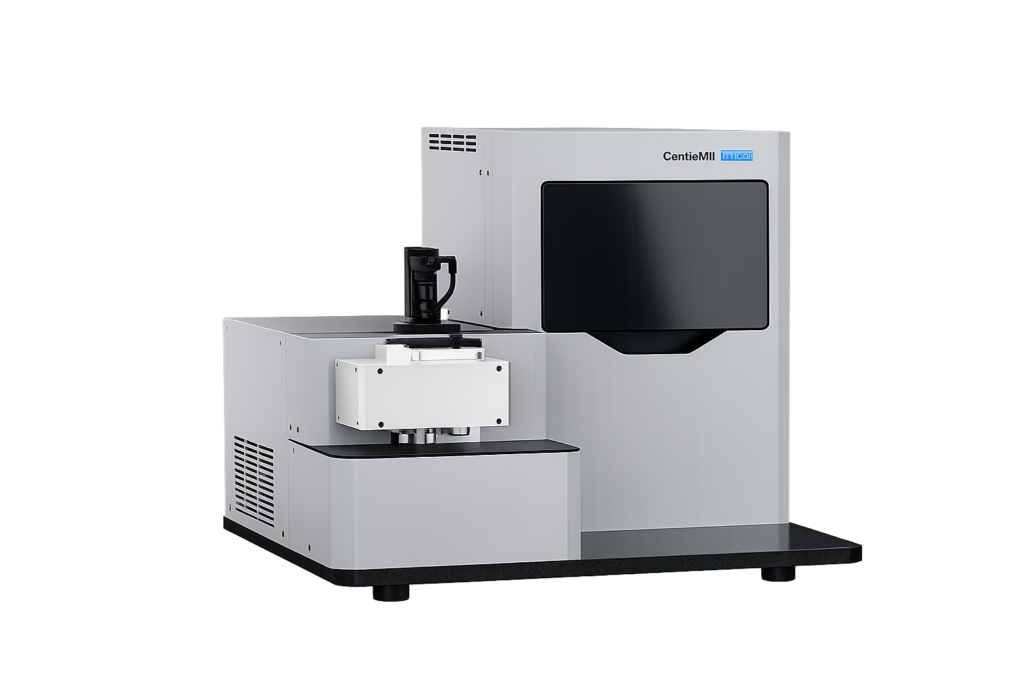

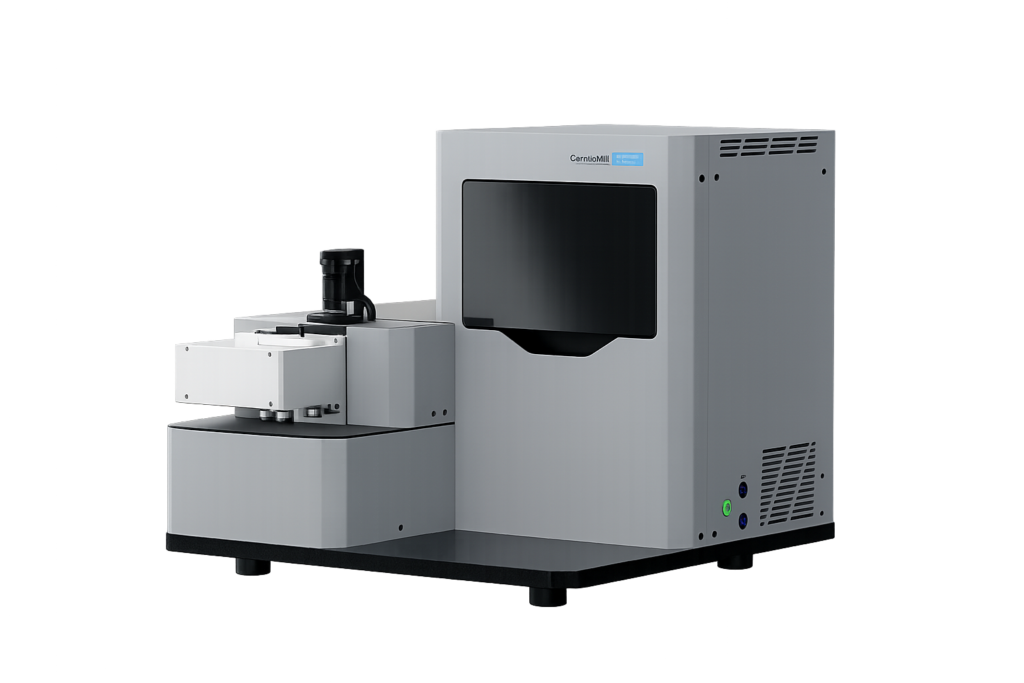

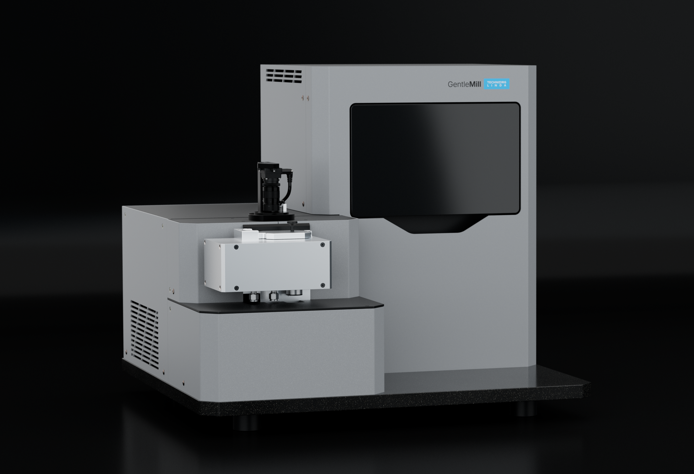

Gentle Mill FIB/TEM Preparation System
The Gentle Mill is a premium, low-energy ion beam polishing system specifically engineered for the precise post-processing and final cleaning of TEM and FIB samples.
By utilising a highly controlled, low-voltage argon ion source, it seamlessly removes amorphous surface layers and FIB-induced artifacts without causing thermal degradation or structural damage. It is the ideal choice for laboratories requiring ultimate repeatability to achieve immaculate, artifact-free lamellae for high-end electron microscopy.
Product Overview
The Technoorg Linda Gentle Mill is engineered for laboratories that require highly controlled, damage-free surface polishing without exposing delicate electron microscopy specimens to aggressive beam energy or excessive heat.
Unlike standard ion milling systems or high-energy Focused Ion Beam (FIB) tools that inherently leave behind amorphous artifact layers and ion implantation, the Gentle Mill operates at ultra-low energies. Its optimised low-voltage argon ion beam technology is designed specifically for fragile, temperature-sensitive, or structurally delicate specimens. This makes it an indispensable tool when working with advanced semiconductor devices, battery materials, catalysts, polymers, and multi-layered thin films where preserving the absolute integrity of the material’s atomic structure is essential.
By automating the final-stage post-FIB cleanup, the system enables consistent, operator-independent sample preparation. This ensures that downstream, high-resolution analytical techniques – such as HR-TEM imaging, EBSD, and EDS – produce highly accurate, reliable results free from preparation-induced artifacts.
For laboratories focused on cutting-edge materials research, semiconductor quality assurance, and failure analysis, the Gentle Mill provides the ultimate solution to modern microscopy sample preparation challenges.
Features & Benefits
Key applications of Gentle Mill FIB/TEM Preparation System
Ultra-Low Energy Ion Polishing
Operates at exceptionally low voltages (down to 100 eV or lower) to gently remove amorphous surface damage without introducing new artifacts.
Post-FIB Target Cleaning
Specifically optimised to eliminate the gallium ion implantation and distortion layers left behind by Focused Ion Beam (FIB) preparation.
Zero Mechanical Stress
Utilises a contactless argon ion beam rather than physical grinding, preserving the absolute structural integrity of fragile or brittle materials.
Minimal Thermal Transfer
Engineered with a low-current beam profile to prevent heat generation, protecting temperature-sensitive polymers and semiconductor layers from thermal degradation.
Cryogenic Compatibility
Supports specialised low-temperature cooling stages when required, allowing for the artifact-free processing of extremely beam-sensitive or soft materials.
Preserves Atomic Structure
Maintains the flawless crystalline integrity of your specimens, ensuring highly accurate downstream EBSD mapping and HR-TEM imaging.
Contamination-Free Processing
Operates under high-vacuum conditions with high-purity argon gas, eliminating cross-contamination during critical analytical workflows.
Microscopy Ready
Perfectly tailored for cutting-edge research, quality assurance, and semiconductor failure analysis environments.
About the Gentle Mill FIB/TEM Preparation System
Sample preparation remains the most critical bottleneck in high-resolution electron microscopy, advanced materials research, and semiconductor quality control. Poor sample preparation frequently introduces artifacts, amorphization, and contamination – leading to compromised imaging data, inaccurate measurements, and unreliable analytical performance, regardless of how sophisticated or expensive the downstream TEM or SEM instrumentation may be.
The Technoorg Linda Gentle Mill was developed specifically to address a critical flaw found in conventional sample preparation workflows. Traditional preparation methods, including standard high-energy ion milling and Focused Ion Beam (FIB) milling, inherently deposit excessive energy into the specimen surface during the thinning process. While FIB is unmatched for site-specific cutting, it frequently causes unwanted gallium ion implantation, structural amorphization, and localised heat generation that can degrade sensitive materials at the nano-scale.
For laboratories working with next-generation semiconductor devices, advanced battery materials, multi-layered thin films, or beam-sensitive polymers, preserving the original crystalline characteristics of the sample is essential. Even minor preparation-induced surface damage can completely mask the true atomic structure, altering analytical results and compromising research validity.
Low-Energy Argon Ion Polishing
The Gentle Mill solves this challenge by utilising a carefully controlled, ultra-low-energy argon ion beam principle. Instead of aggressive material removal, it gently polishes the specimen surface at exceptionally low voltages (down to 100 eV or lower), effortlessly removing amorphous artifact layers and contamination while minimising heat transfer. This gentle, contactless approach ensures that delicate interfaces and phase boundaries remain structurally intact and pristine.
Specialised Applications across Materials Science
Semiconductor Failure Analysis & Electronics: In advanced semiconductor development, the Gentle Mill is invaluable for post-FIB cleanup. It eliminates gallium artifacts on cross-sections, allowing for flawless, high-contrast imaging of sub-nanometre nodes, gate oxides, and complex multi-layer stacks without distorting the data.
Energy Storage & Battery Research: Advanced materials, including lithium battery cathode/anode interfaces and solid-state electrolytes, are highly sensitive to thermal and structural damage. Maintaining true structural integrity allows battery researchers to observe genuine material degradation mechanisms rather than preparation artifacts.
Advanced Thin Films & Nanomaterials: Characterising graphene composites, catalysts, or atomic-layer deposition (ALD) coatings requires an utterly flawless surface. The Gentle Mill provides the atomic-scale smoothness needed to unlock the true potential of aberration-corrected TEMs.
Cryogenic and High-Precision Workflow Support
The system also supports specialized cryogenic milling workflows. Certain polymers, organic electronics, and beam-sensitive compounds become highly unstable when exposed to ambient-temperature ion beams. By integrating low-temperature cooling stages, laboratories can process these highly delicate materials while maintaining their original chemical and physical properties.
From a quality assurance and analytical perspective, repeatability remains one of the strongest advantages of the Gentle Mill. Laboratories operating at the highest levels of industrial and academic research require sample preparation systems capable of delivering identical, operator-independent conditions across repeated workflows. This eliminates user-to-user variation and ensures that downstream high-resolution techniques – such as HR-TEM imaging, EBSD mapping, and EDS microanalysis – produce highly reliable, publication-ready results.
Engineered for Modern Lab Demands
Technical procurement teams evaluating laboratory characterization equipment increasingly look beyond basic specifications and focus on workflow efficiency, sample survival rates, and long-term reproducibility. The Gentle Mill addresses these requirements by combining precise Hungarian engineering with ultimate analytical reliability.
For laboratories in the UK and worldwide working within semiconductor manufacturing, advanced energy storage, and elite university research programs, precision sample preparation has become the definitive factor in data quality. The Gentle Mill represents an intelligent, indispensable solution for organizations seeking to elevate their microscopy data while protecting high-value, site-specific specimens.
The Gentle Mill delivers ultra-low energy ion polishing for artifact-free TEM
and FIB sample preparation, ensuring accurate, high-resolution microscopy results.
Product FAQ's
The Gentle Mill is a specialised low-energy ion beam polishing system used to perform final-stage cleaning and polishing on SEM and TEM specimens. It is primarily used for post-FIB (Focused Ion Beam) cleanup to remove amorphous surface layers, gallium ion implantation, and artifacts without inducing structural or thermal damage.
Conventional ion mills often operate at higher acceleration voltages (up to 10 kV) to aggressively thin bulk materials. The Gentle Mill focuses on ultra-low energy ranges (down to 100 eV or lower), using a precise, low-voltage argon ion beam to gently polish surfaces at an atomic level without introducing new beam damage.
Yes. The Gentle Mill utilises a low-current beam profile and optimised geometry that minimises thermal transfer. This makes it exceptionally safe for delicate, temperature-sensitive materials such as polymers, organic electronics, and advanced semiconductor layers.
While all ion beams deposit some energy, the Gentle Mill’s design drastically reduces heat transfer compared to traditional milling systems. For extremely temperature-sensitive or reactive samples, the system can be configured with specialised cooling options.
Yes. The Gentle Mill supports low-temperature cryogenic workflows. This allows laboratories to safely process highly beam-sensitive, soft, or volatile materials while preserving their original, unaltered chemical and physical structure
The system is widely adopted in semiconductor failure analysis, advanced electronics manufacturing, battery and energy storage research (such as lithium-ion interfaces), nanotechnology, and academic materials science laboratories utilizing high-end TEM and SEM imaging
Focused Ion Beam (FIB) milling is excellent for site-specific lifting, but it leaves behind a thin layer of amorphous damage and implanted gallium ions. The Gentle Mill removes this artifact layer, revealing the true crystalline structure underneath, which is essential for accurate HR-TEM imaging, EBSD mapping, and EDS microanalysis
