Instruments from Koehler for Fuels Testing
Koehler manufacture a wide range of instruments for Petrochemical testing. Below are a selection which are used in the fuel testing industries.
Product Overview
Koehler Instrument Company manufactures a range of instruments for petroleum and fuels testing, supporting applications such as conductivity, viscosity, colour, and density analysis. Designed to meet ASTM and ISO standards, these systems deliver reliable, repeatable results for refinery, aviation fuel, and quality control laboratories.
Their robust design and ease of use make them suitable for both laboratory and on-site testing environments.

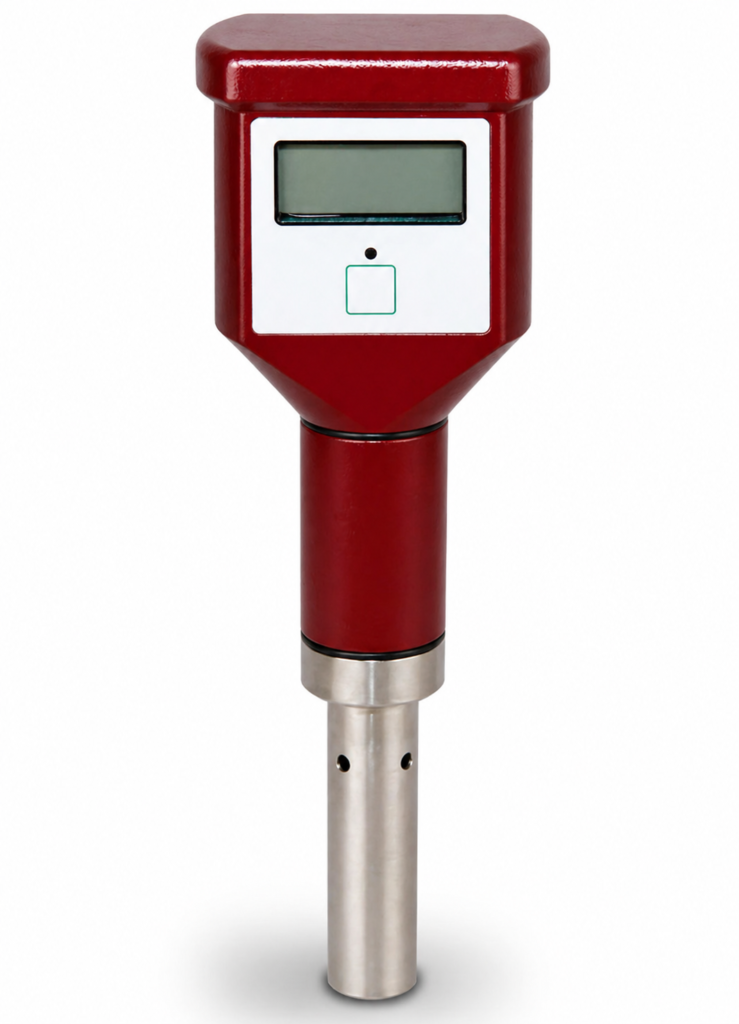

K11420 Portable Digital Conductivity Meter
This Instrinsically Safe (listed by UL and UCIE) conductivity meter is used for the determination of the electrical conductivity of aviation and distillate fuels with and without a static dissipater additive.
The test normally gives a measurement of the conductivity when the fuel is uncharged, ie, electrically at rest (known as the rest conductivity). The unit displays conductivity units (CU), which are defined as picosiemens per meter in ASTM D2624.
Conforms to the specifications of: ASTM D2624, and ISO 6297
Range: 0 – 2000 pS/m
Resolution: ±1 (0 – 2k pS/m)
Accuracy: 2% of Reading
Controls: 1 Pushbutton, dual function
Display: Liquid Crystal, 5 Digits
Ground: Banana jack on electronics assembly
Power: Temperature Range: 0° to 75°C
Carrying Case: Hard, solvent resistant, moulded plastic

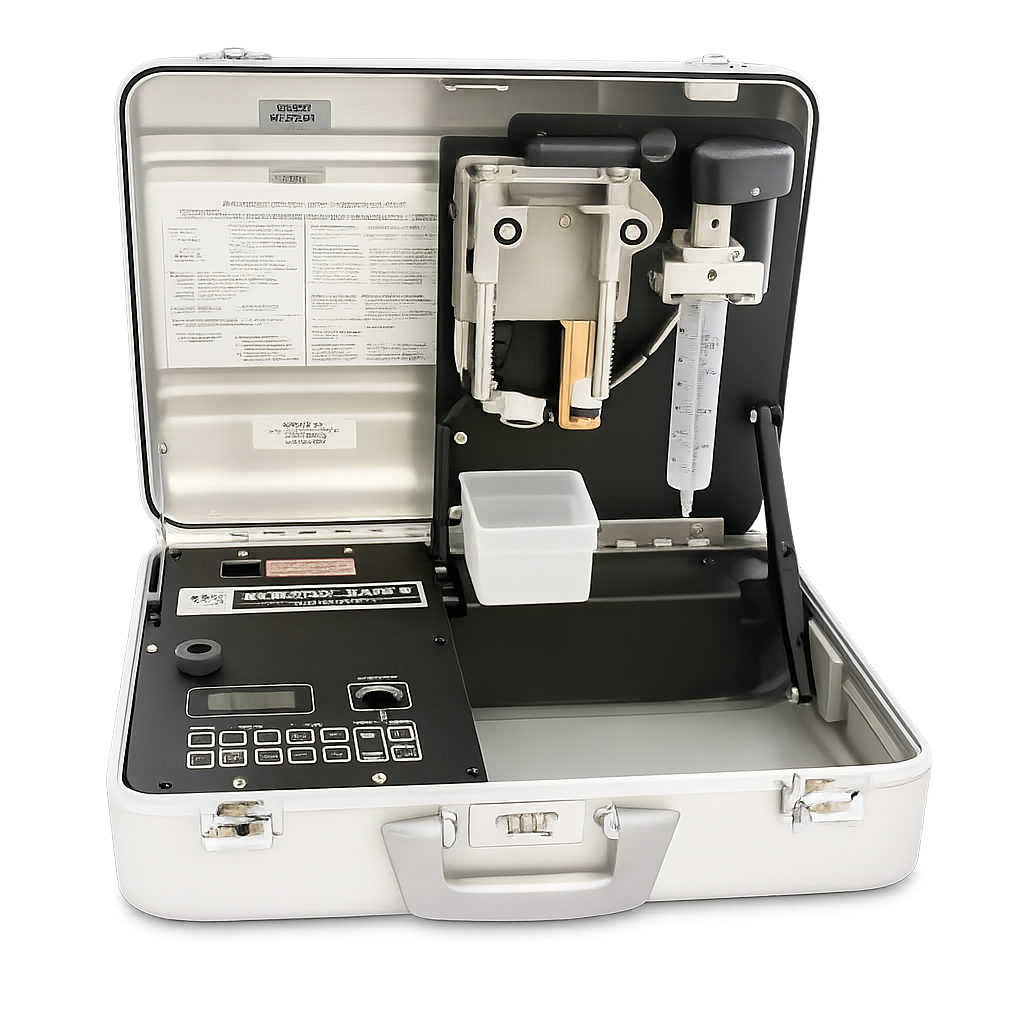

K11440 Micro-Separometer
For Determining Water Separation Characteristics of Aviation Turbine Fuels by Portable Separometer
Conforms to the specifications of: ASTM D3948, D4860, D7224, D7261
The Micro-Separometer is a rapid portable means to rate the ability of aviation turbine fuels to release entrained or emulsified water when passed through fiberglass coalescing material. This provides a measure of the presence of surfactants in aviation turbine fuels which are known to degrade the performance of filter separators which are used to remove water from the fuel.
The presence of this water can impair engine performance and initiate microbiological growth, which can cause corrosion in tanks and filter plugging in fuel lines.
The Micro-Separometer is an electro-mechanical instrument and contains a turbidimeter, a mechanical mixer, and a disposable filter. The whole process is timed and the user must perform each part of the test at the appropriate time. A portion of the sample, is used to set the meter to read 100. Another portion of the sample is used to create a water/fuel emulsion using the mixer.
The emulsion is passed through the filter at a programmed rate and a portion is collected, the turbidity is measured and the water separation characteristic of the fuel is rated.

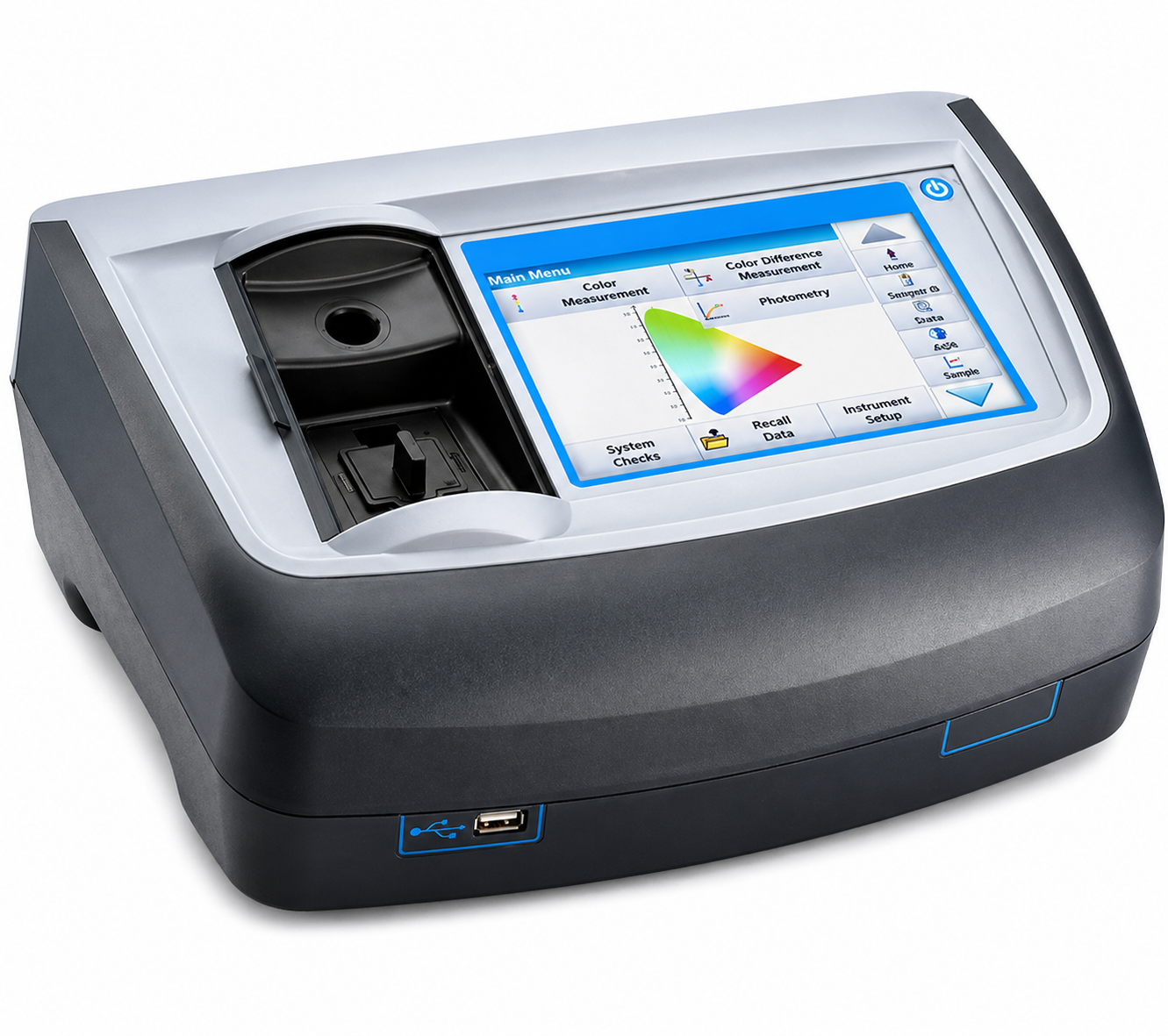

K13270 AC100 Petroleum Colourimeter
For Saybolt Colour of Petroleum Products (Saybolt Chromometer Method) D156
D156 (Saybolt Colour) is the determination of the colour of refined oils such as undyed motor and aviation gasoline, jet propulsion fuels, naphthas and kerosine, and, in addition, petroleum waxes and pharmaceutical white oils.
The K13270 has a large colour touchscreen for easy navigation through the menu options. Users can measure wavelengths from 380nm to 720nm to measure the five most important colour scales which are used for fuels, resins, oils and fats for liquid colour measurement. With its with reference beam technology the unit provides high precision photometric colour measurements. The instrument can store up to 400 colour readings.
Conforms to the specifications of: ASTM D156, D1209, D5386, D1544, D6045, D1500;
Automatic Cell Recognition
Beam Height: 10 mm
Data Storage: 400 color readings
Interface: 2 x USB Type A, 1 x USB Type B, 1 x Ethernet
Operating Temperature Range: 10 to 40°C
Optical Path Length: 10 mm – 50 mm
Optical System: 0° / 180° rectilinear
Photometric Accuracy: 1% at 0.5 to 2.0 Abs, 0.005 Abs at 0
to 0.5 Abs
Photometric Linearity: < 0.5 % to 2 Abs, 1% with neutral glass at 546 nm
Reproducibility: ± 0.2 % transmission
Standard Illuminant: C
Standard Observer: 2°
Wavelength Accuracy: ± 1.5 nm
Wavelength Calibration: Automatic
Wavelength Range: 380 nm to 720 nm
Wavelength Reproducibility: 0.1 nm

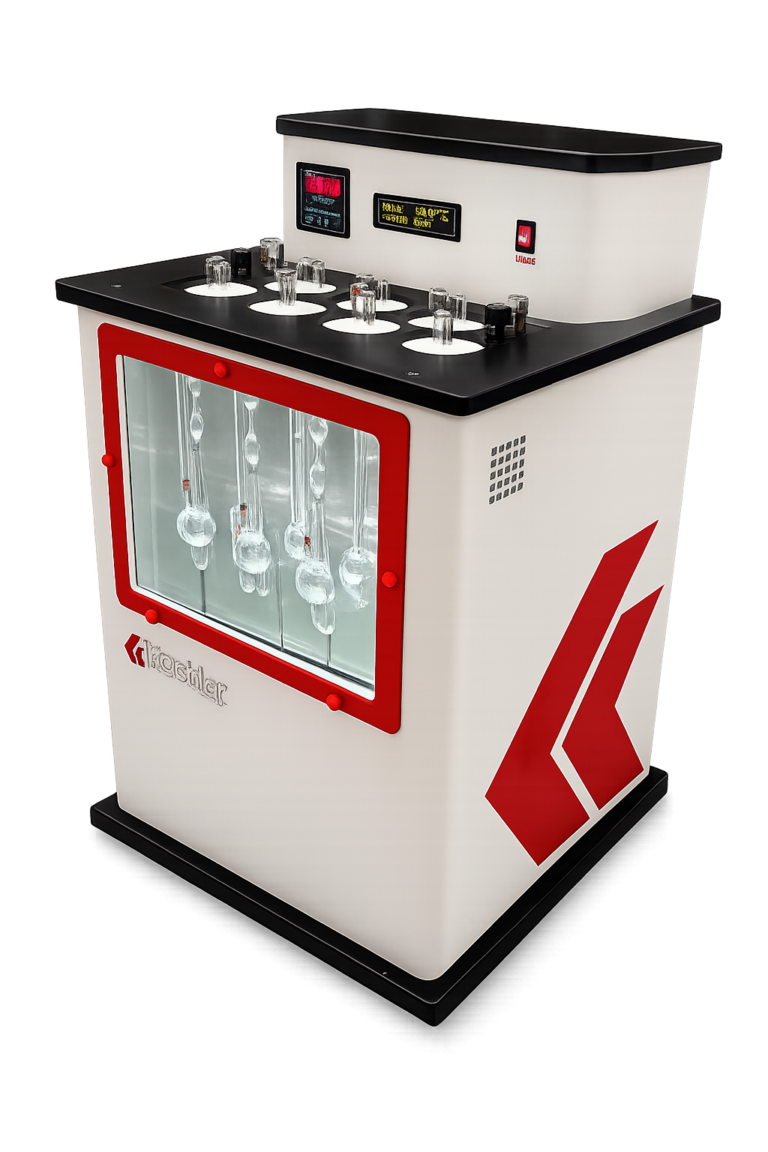

K23900 Kinematic Viscosity Bath
For Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)
This constant temperature bath with microprocessor PID circuitry assures precise, reliable temperature control within ASTM specified stability and uniformity throughout the operating range of the bath. This temperature control uniformity is assured by the integrated stirrer and baffling system for uniform bath temperature distribution.
The simple push-button controls and dual digital displays mean easy setting and monitoring of bath temperature. Seven glass capillary viscometers of various types can be used and viewing the viscometers is assisted by LED illumination inside the bath plus a baffle which provides a background for easy viewing.
Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71 and more
Temperature Control Range: 20°C to 100°C
Temperature Display Resolution / Accuracy: 0.01°C / ± 0.01 °C
Bath Temperature Stability / Uniformity: ± 0.02 °C / ± 0.02 °C
Thermometer Ports: 2
Connectivity: USB
Viscometer ports: Seven round 2″ (51 mm) ports
Bath Medium: 10 cSt Silicone Oil
Koehler Product Videos

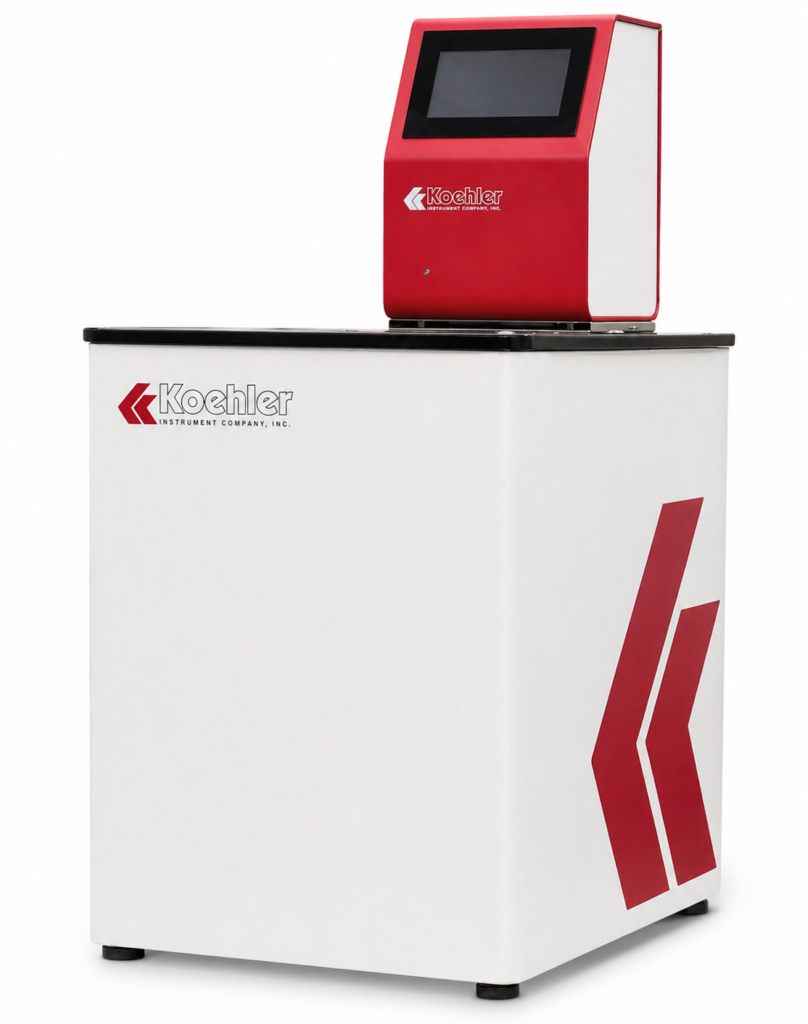

K646 Constant Temperature Hydrometer Bath, 6 and 12-Place
For Density, Relative Density (Specific Gravity), or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method
Conforms to the Specifications of: ASTM D1298, D6074, D6158; ISO 3675
The hydrometer bath can be used to measure the density, relative density (specific gravity) or API (American Petroleum Institute) gravity determination of several products including crude petroleum, liquid petroleum products and mixtures of petroleum and non-petroleum products.
This versatile constant temperature bath has been designed for density/gravity determinations of petroleum products at temperatures up to 90°C, and can also be used for Reid Vapor Pressure determinations using immersion bombs.
Quick temperature stabilization without overshoot is achieved using the digital temperature control. The unit is protected by an overtemperature control circuit that will interrupt power if the bath temperature exceeds the programmed cut-off point.
Koehler instruments provide precise, standards-compliant solutions for reliable petroleum
and fuels testing across laboratory and quality control applications.
