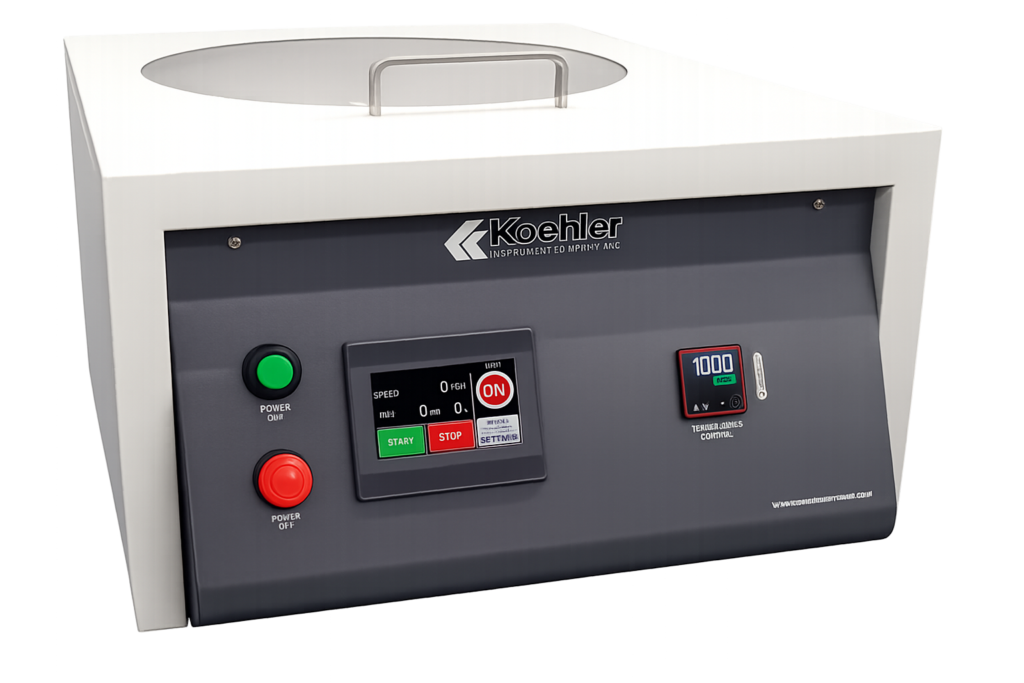

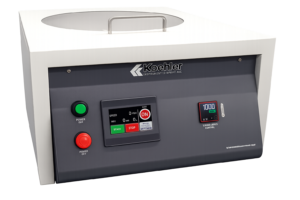

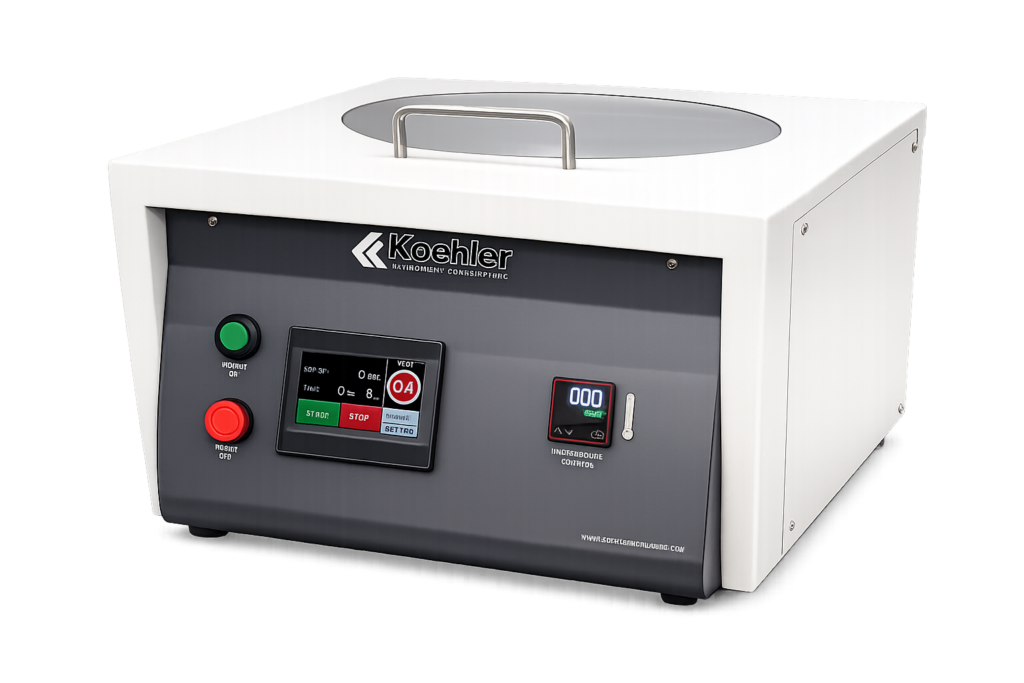

Koehler K60092 Automatic Heated Oil Test Centrifuge
The Koehler K60092 Automatic Heated Oil Test Centrifuge is a fully automatic bench top centrifuge designed for petroleum testing applications.
Product Overview
Centrifugation can be used to determine sediment and water content in crude oil, fuel oils, middle distillate fuels, and biodiesel. This fully automatic bench top centrifuge has been designed for petroleum testing applications. It features an LCD touch screen control panel which can be used to set the temperature, the duration of the test, the relative centrifugal force (RCF)/ revolutions per minute (RPM) values and also allows the user to select the type of rotor assembly and corresponding glassware which will be used during the test.
Features & Benefits
The Koehler K60092 Automatic Heated Oil Test Centrifuge conforms to the specifications of several methods:
ASTM D91, D96, D893, D1796, D2273, D2709, D2711, D4007, D5546; IP 75, 145, 359; and several more.
- Maximum Speed: 2200 RPM
- Maximum RCF: 1327 (long tubes); 1170 (short tubes); 865 (pear-shaped tubes)
- Timer: 0 to 999 min
- Set Speed: 200 - 2200 RPM
- Speed Readout: 0 - 2200 RPM
- Temperature Control: ambient to 93°C
- Temperature Readout: Digital
- Brake: Automatic Dynamic
Key applications of Koehler K60092 Automatic Heated Oil Test Centrifuge
• Choice of long, short or pear rotor assembly to accommodate corresponding centrifuge tubes
• Capacity of four 6” or 8” conical centrifuge ASTM type long, short or pear tubes
• Automatic control of acceleration ramp, centrifugation speed, and timing functions
• There is an LCD touch screen control panel
• The centrifuge has substantial insulation for reduced heat loss
• Precise balancing means quiet operation
• Large, clear, top opening lid
• Class 1, Division 2 explosion resistant rating meaning that it is safe to use for petrochemical applications.
• Safety lockout mechanism to prevent access while the rotor is spinning
• Nitrogen purge facility
• Moulded PTFE cushions provide for maximum protection and easy positioning of the tubes
K60002, K60092 - Heated Oil Test Centrifuge (Operational Video)
About Koehler K60092 Automatic Heated Oil Test Centrifuge
How Does the Automatic Oil Test Centrifuge Work?

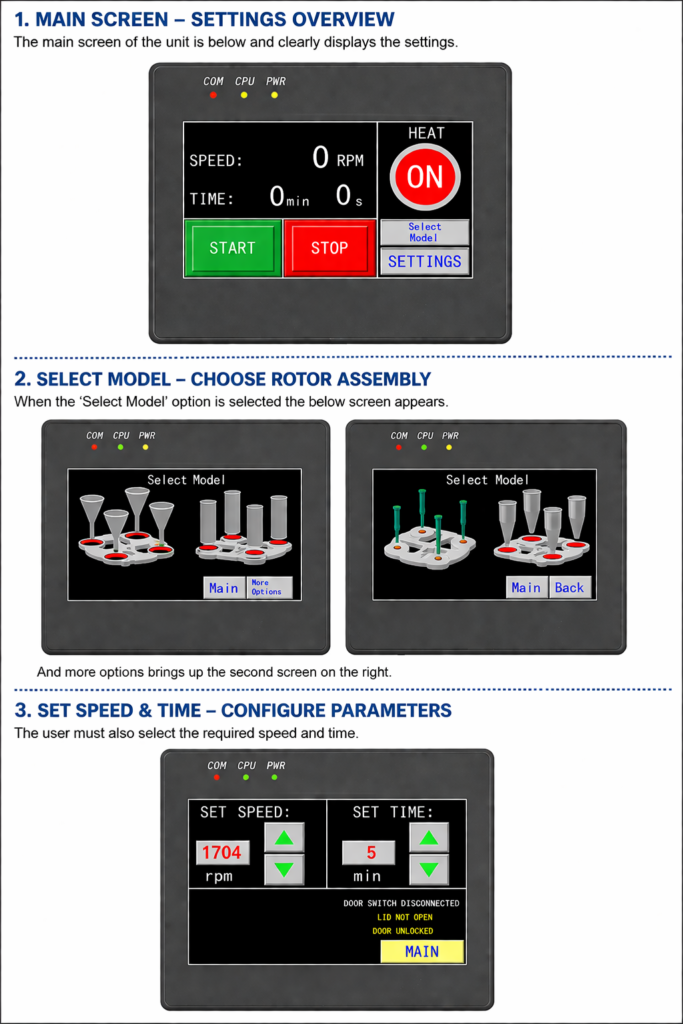

This fully automatic bench top centrifuge has been designed for petroleum testing applications. The integrated touch screen can be used to set the temperature, duration of the test, RCF/RPM values and also allows the user to choose the type of rotor assembly and corresponding glassware that will be used during the test.
The RPM is automatically calculated from the given RCF and the type of rotor selected. The large, clear, top opening lid allows easy access to the rotor and tube holders.
The lid has a large viewing window allowing the operator to see inside the chamber to check the status of the rotor and for possible spillage from the centrifuge tubes. Moulded PTFE cushions provide protection and easy positioning of the tubes.
Safety Features and Nitrogen Purge System
The Centrifuge comes equipped with a safety lockout mechanism. If there is an emergency shutdown, the lid is locked and cannot be unlocked until the unit comes to a complete stop and is turned back on, and the stop/unlock key is pressed on the touch screen display.
Furthermore, the centrifuge cannot start while the lid is open and the latch is not engaged. These features protect the users from injury during operation of the centrifuge.
The “Nitrogen Purge” feature allows a slow release of nitrogen into the bowl of the centrifuge and requires an external nitrogen gas source which can easily connect to an inlet port located at the back of the unit.
In summary, the Automatic Heated Oil Test Centrifuge is an easy to operate and safe option for determining sediment and water content in crude oil, fuel oils, middle distillate fuels, and biodiesel.
The Koehler K60092 centrifuge provides automated, standards compliant testing for accurate sediment and water measurement in petroleum samples.
Product FAQ's
The maximum speed of the centrifuge is 2200RPM. The maximum RCF is 1327 with the long tubes, 1170 with the short tubes and 865 with the pear-shaped tubes.
There is a choice of long, short or pear rotor assembly to accommodate corresponding centrifuge tubes and the centrifuge has a capacity of four 6” or 8” conical centrifuge ASTM type long, short or pear tubes.
The centrifuge can be controlled from ambient up to 93°C
