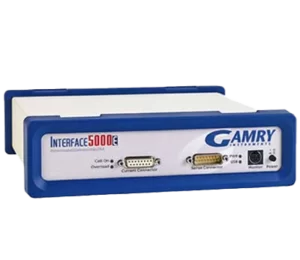

Interface 5000E Potentiostat

Interface 5000E Potentiostat

The Interface 5000E Potentiosat High-performance potentiostat/galvanostat for advanced battery, fuel cell, and supercapacitor testing. Perfect for applications up to 5 amps.

Product Overview

The Potentiostat from Gamry Instruments is a fully-featured potentiostat/galvanostat designed for comprehensive testing of batteries, fuel cells, and supercapacitors.

It offers a maximum applied potential of ±6 V and a maximum current of +/- 5A, making it ideal for a wide range of electrochemical applications.

Features & Benefits

Interface 5000E

Dual Electrometer

Monitor both half cell voltages

High Maximum Applied Potential

±6 V

Supports Various Techniques

From Electrochemical Energy to EIS

Key applications of Interface 5000E

  • Maximum Applied Current: Offers a maximum applied current of ±1 A.
  • Maximum Applied Potential: Capable of delivering a maximum applied potential of ±12 V.
  • Electrochemical Impedance Spectroscopy: Supports Electrochemical Impedance Spectroscopy ranging from 10 μHz to 2 MHz.
  • Designed for Various Applications: Ideal for applications such as Electrochemical Corrosion, Battery Testing, Fuel Cell Testing, and Physical Electrochemistry.
  • Configurable Design: Can be configured as a single-channel potentiostat, bipotentiostat, or multichannel potentiostat.
  • Flexibility for Research: Provides the necessary flexibility to meet diverse research needs.
  • Dual electrometer: Features a dual electrometer for simultaneous cathode and anode monitoring.

Interface 5000E Potentiostat Product Video

About the Interface 5000E Potentiostat

The Potentiostat is a high-performance device from Gamry Instruments, a trusted name in the field of electrochemical instrumentation. This potentiostat/galvanostat is specifically designed for cell-level testing of energy storage and conversion devices, including batteries, fuel cells, and supercapacitors. It boasts a dual electrometer, which allows for the monitoring of both half cell voltages in addition to the whole cell voltage during an experiment. This feature is particularly useful in charge/discharge experiments and EIS experiments.

The Interface 5000E supports a wide range of techniques, including Electrochemical Energy, Critical Pitting Temperature, Pulse Voltammetry, and Electrochemical Impedance Spectroscopy (EIS). This makes it a versatile tool for various electrochemical applications. The device also offers a maximum applied potential of ±6 V and a maximum current of +/- 5A, ensuring it can handle a wide range of testing requirements.

Interface 5000E

Despite its advanced features, the Interface 5000E is designed with user-friendliness in mind. It is the size of a chemistry textbook and weighs only 3 kgs (6.6 lbs), making it portable and convenient to use. It also offers an easy USB 2.0 connection to a Windows computer, making setup and data transfer a breeze.

The Interface 5000E  is protected by a 2-year factory service warranty, ensuring that you can rely on its quality and durability. With its advanced features, user-friendly design, and reliable performance, the Interface 5000E Potentiostat is a valuable tool for any laboratory or research facility involved in electrochemical testing.

"The Interface 5000E Potentiostat offers dual electrometer functionality,
±6 V potential, ±5A current, and EIS up to 1 MHz
for advanced battery and fuel cell testing"

Product FAQ's

The maximum applied potential of the Interface 5000E Potentiostat is ±6 V.

The Interface 5000E Potentiostat supports a variety of techniques including Electrochemical Energy, Critical Pitting Temperature, Pulse Voltammetry, and Electrochemical Impedance Spectroscopy (EIS).

The Interface 5000E Potentiostat weighs only 3 kgs (6.6 lbs), making it portable and convenient to use.

The Interface 5000E Potentiostat is protected by a 2-year factory service warranty.

The Interface 5000E Potentiostat offers an easy USB 2.0 connection to a Windows computer.
